產品概述

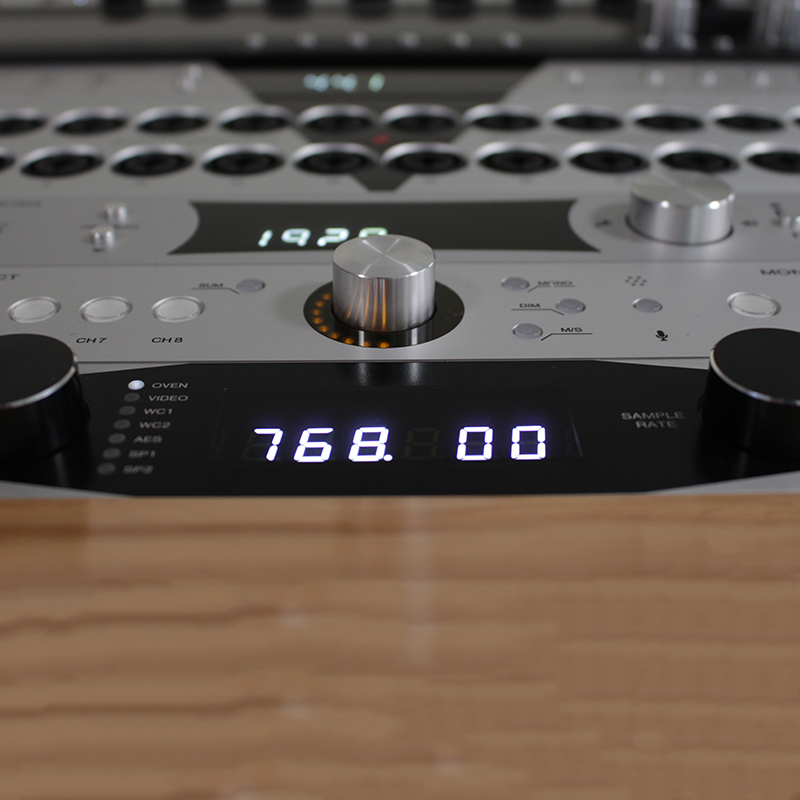

768 kHz高清主時鐘

新的 OCX HD 是一個完美的“基礎”時鐘解決方案,適用於母帶和錄音工作室、專案工作室、電影配樂、後期製作工作室以及現場擴聲安裝。

十多年來,羚羊的傳奇OCX主時鐘一直是音頻領域的主導力量。

現在,羚羊音頻繼續推出新的傳奇主時鐘——Isochrone OCX HD

特点

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

64位 Acoustically Focused Clocking (AFC) 抖動管理演算法

第四代 Acoustically Focused Clocking (AFC) 抖動管理演算法

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_move.svg

採樣率支持最大 768 kHz

輸出支持最大 5 個不同採樣率

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

更強的連通性

AES/EBU 和 S/PDIF 時鐘輸出最高達 192 kHz,BNC 通用視頻輸入以及原子時鐘輸入

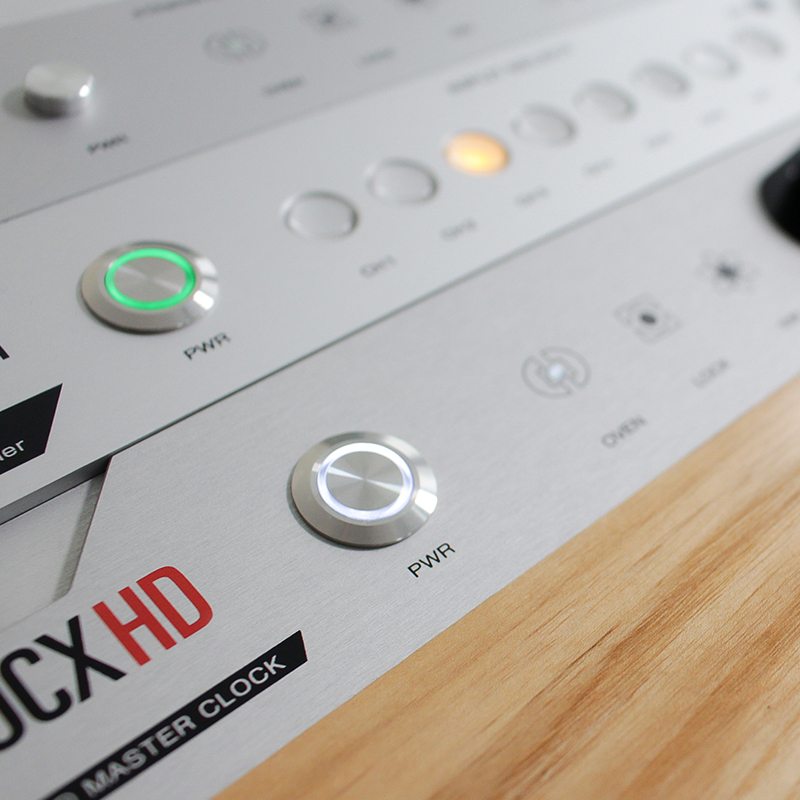

OCX HD特點

描述

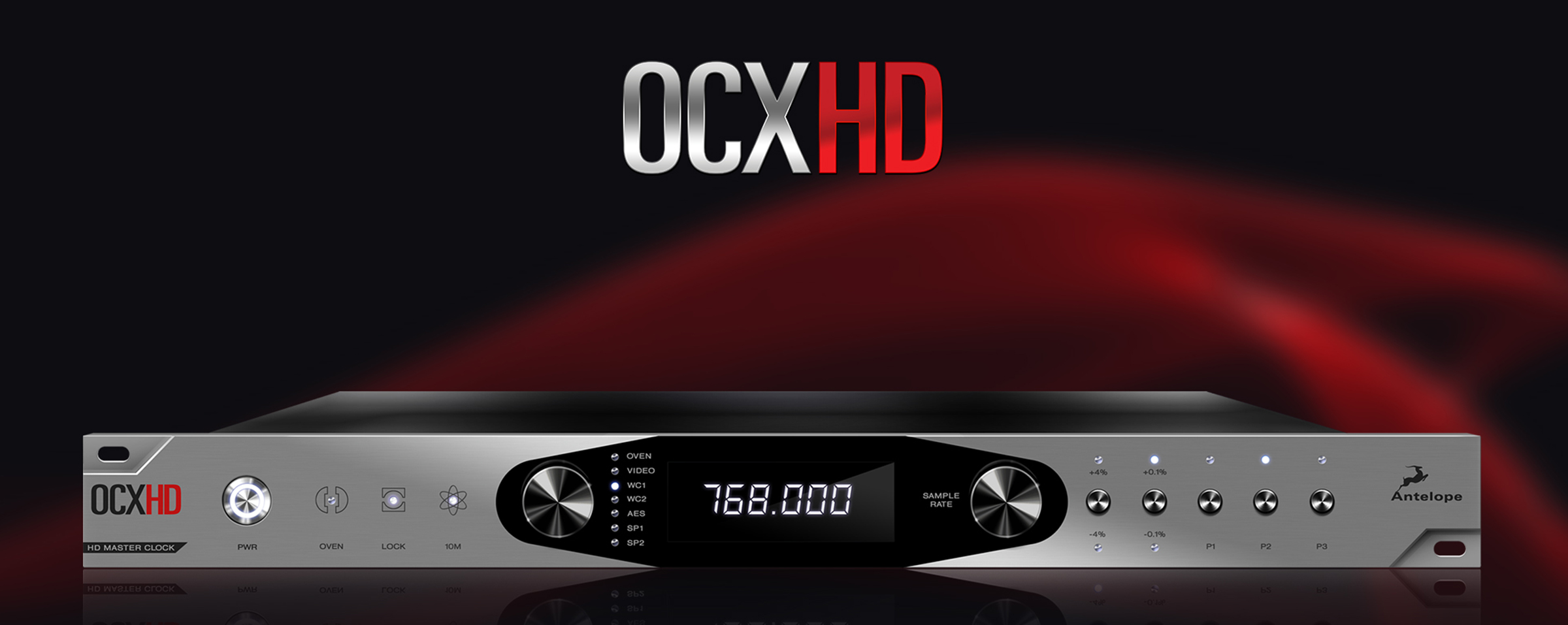

時鐘新標準

ocx HD和時鐘廣泛選擇給專業工作室提供了市場上最通用的音頻時鐘

OCX HD 更上一層樓,支持高達 768 kHz 的採樣率並具有該公司最一流的第四代 Acoustically Focused Clocking (AFC) 抖動管理演算法以及溫控水晶振盪器。

OCX HD 主時鐘提供了多種時鐘選項,可以適應工作室或現場配置。輸出包括了 Word Clock(字時鐘)、BNC、4xAES/EBU 和 2xS/PDIF。各種各樣的連通性使OCX HD成為市場上最通用的音頻主時鐘,同時證明,專有時鐘技術提供了市場上最可靠的音樂和音頻同步生成。

視頻時鐘

你喜歡的羚羊風格異常的Trinity 主時鐘只占一個 1U 機架空間

此外,OCX HD 還提供了 Word Clock(字時鐘)輸入以及 Video Sync(視頻同步)輸入,這可以解決各種 SD 和 HD 格式的問題,然後時鐘可以通過排檔分配並調高和調低速度。一個 10 MHz 輸入允許它與 Antelope 最新的 Atomic Clock – 10MX(原子時鐘)同步。

先進的控制

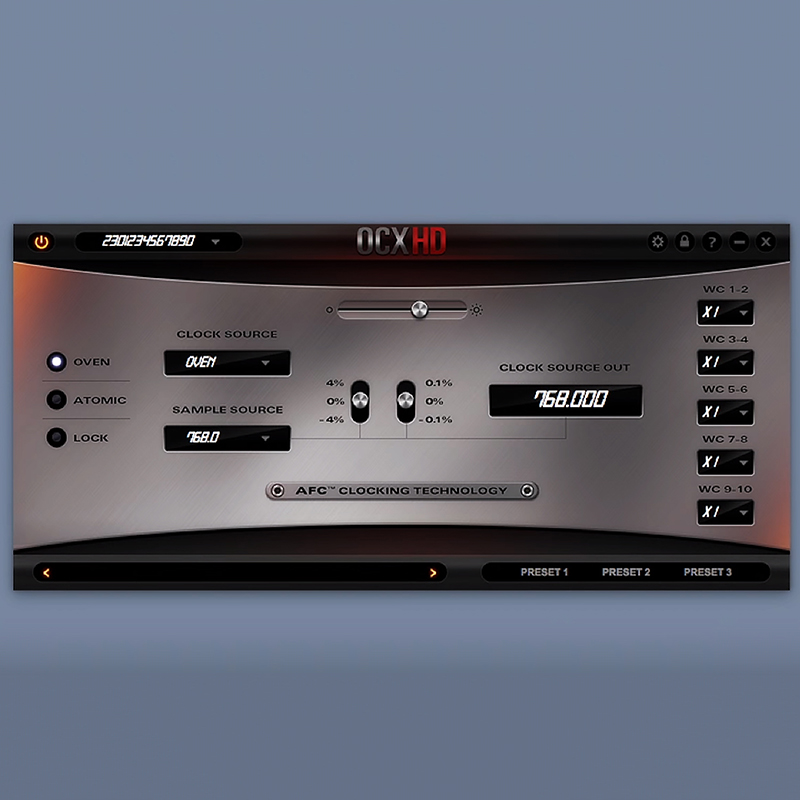

通過羚羊音頻的靈活的軟體控制面板訪問OCX HD所有的功能

就像所有 Antelope 新一代產品一樣,這款最新的主時鐘可從靈活的固件更新功能。可以快速而輕鬆的在易於使用的 OS X 和 Windows 平臺軟體控制面板進行更新。

這個桌面應用程式提供了方便的遙控,簡化了專案流程並讓它可以輕鬆從前面板配置。該設備還配備優雅的前面板,給配置支架增添未來主義美學。

教程

video tutorials coming soon

Our team is working on it. If you have questions about the OCX HD, please contact us.

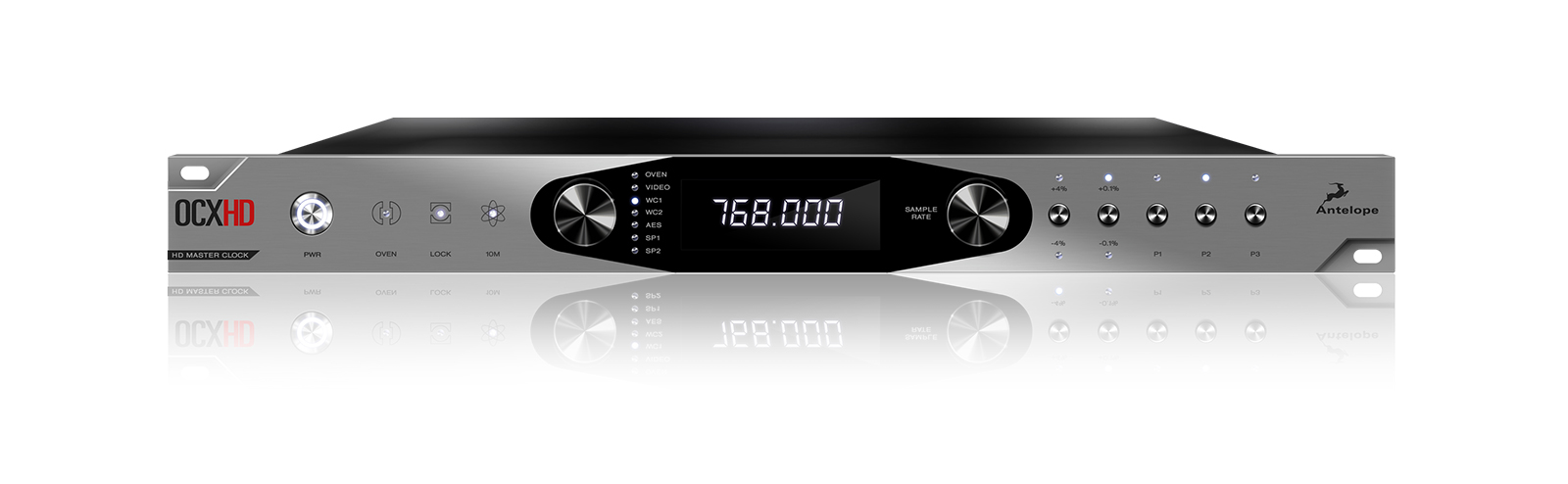

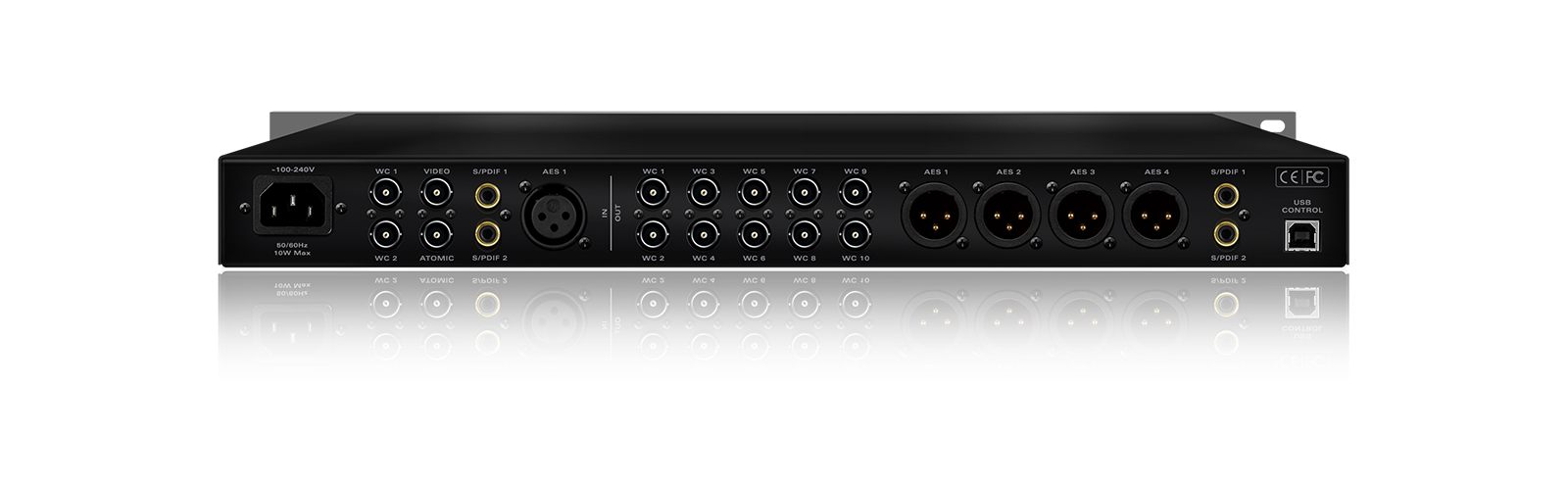

连通性

规格

    • Sample Rates Generated

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz

    • Master Clock Outputs

10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz

    • Inputs

2x Word Clock Inputs up to 768kHz
1x Video Input accepting wide range of SD and HD video signals
1x Atomic Input
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
1x USB Input for control

    • Atomic Clock Input

1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz

    • Humidity

30 – 80% RH non-condensing

    • Clocking System

4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

    • Clock Calibration

< +/-0.001 ppm

    • Clock Stability

<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F

    • Clock Aging

< 1 ppm per year

    • Atomic Clock Input

1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC

    • Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384

    • Operating Temperature

0 – 50°C, 32-122°F

    • Weight

2.65 kg/5.84 lb

    • Dimensions

482.6 (W) х 230 (D) х 44 (H) mm
19 (W) x 9.05 (D) x 1.75 (H) inch

    • Power Supply

AC Universal Input ~95-245V, 20 Watts Max

Master clocks comparison table



10MX

LIVECLOCK

OCXHD

TRINITY

10M

10MX

LiveClock

OCXHD

TRINITY

10M

Atomic Reference Type

Rubidium Ultra-Stable Resonance Controlled
Master Oscillator
xxxRubidium Ultra-Stable Resonance Controlled
Master Oscillator

Clocking System

x4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
x

Clock Stability

t=1s ≤3E-11
t=10s ≤1.6E-11
t=100s ≤8E-12
<+/- 0.02 ppm, oven controlled at 64.5°C/ 148.1°F<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F< +/-0.02ppm @ 64.5°CTypical: 0.05 PPB per month (measured after 6 months of continuous operation)
First Year < 2 PPB

Clock Aging

Daily* ±2.5E-11
Monthly* ±1E-10
Yearly ±1E-9
(*After 1 day & 1 month of operation respectively)
< 1 ppm per year< 1 ppm per year< 1 ppm per yearBetter than 0.02 PPB
Typical: 0.05 PPB per month (measured after 6 months
of continuous operation)
First Year < 2 PpB

Warm-Up Time

8 – 10 minutes (depends on ambient temperature)xxx8-10 minutes (depends on ambient temperature)

Inputs

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz
1x Word Clock up to 192kHz
1x Atomic Input
2x Word Clock Inputs up to 768kHz
1 x 10M Atomic Clock Input
1x Video Input accepting wide range of SD and HD video signals
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
2 selectable Word Clock on BNC 32kHz – 384kHz
1x Atomic Input
1x Universal video input on BNC.
1x AES/EBU on XLR. 32kHz – 192kHz @110Ω terminated
1x S/PDIF on RCA. 32kHz – 192kHz @75Ω terminated
x

Outputs

4 x Word Clock Outputs on BNC 44.1 – 768 kHz square wave signal
10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)
2 x AES/EBU on XLR
2 x S/PDIF on RCA
4x Word Clock Outputs up to 192 kHz
2x AES/EBU Outputs up to 192 kHz
2x S/PDIF Outputs up to 192 kHz
10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz
Wordclock – 16 BNC, 3Vpp @ 75Ω
6x HD Video BNC @75Ω
SD 1 – BNC @75Ω fixed for NTSC video standard. Black Burst
SD 2 – BNC @75Ω fixed for PAL video standard. Black Burst
SD 3 – BNC @75Ω PAL 24/NTSC 30 selectable.Composite Sync
SD 4 – BNC @75Ω PAL 48/PAL 47.95 selectable. Composite Sync
AES/EBU – 4 XLR @ 110Ω
S/PDIF – 4 RCA @ 75Ω
8 x Atomic Clock Output on BNC Sinusoidal, 70 Ohm, 1 Vpp typical (unload)

USB I/O

USB 2.0 Full-Speed, Type B, only for controlUSB 2.0 Hi-Speed, Type B, only for control1x USB Input for control2.0 full-speedx

Frequency & Accuracy

10 MHz, better than ±5E-11 @25C (±0.05 PPB)xxx10 MHz, better than 0.03 PPB

Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Power Supply

AC Universal Input ~100-240V, 15 Watts max.DC Universal Input 12 – 18V, 6 Watts max.AC Universal Input ~95-245V, 20 Watts max.AC Universal Input ~90-250V, 15 Watts max.AC & DC Dual Redundant ~100-240V; 12V, 40 Watts during start up / 17 Watts after warm up

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth (for firmware update): 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (El Capitan 10.11.6 Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.

评论

Featured reviews coming soon

If you would like to test and review the OCX HD, please contact us.

下载

MANUALS

User manual

OCX HD Owner’s Manual

SOFTWARE

Windows
OCX HD Control Panel for Windows (Nov 24, 2016)

MAC
OCX HD Control Panel for Mac OS X 10.9 and newer (Nov 24, 2016)
