產品概述

I know I can’t live without making the 10MX as part of my daily work life. It’s unbelievable what clocking done right can do for your music…”

Greg Wells is a multiple Grammy nominated record producer, songwriter, musician, and mix engineer in Los Angeles. His credits are Holychild, Katy Perry, Mayer Hawthorne, Greg Holden, Adele, Twenty One Pilots, Pharrell Williams, Rufus Wainwright, Theophilus London, Mika, Timbaland, OneRepublic, Deftones, Pink, Kid Cudi, Burt Bacharach, k. d. lang, Otep, Sir George Martin, and the Count Basie Orchestra.

Watch the full video

完美時鐘科技的融合

10MX融合了10M的原子精度和Trinity的突破性抖動管理算法

10MX是羚羊系列最新、最主要的產品,它擁有兩代羚羊傳奇產品的技術。將10M的原子精度和Trinity精細的抖動管理算法組合到了一個1U機箱中,造就世界上最穩定的音樂時鐘。

10MX有著成熟的科技和現代工業設計,既要求質量又重視卓越的性能。新的銣原子鐘的出現是數字音頻世界裡20多年專業知識的頓悟的成果,使模擬聲音生動真實清晰,呈現深度、寬度和三維效果。

特点

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

4 个 WC 輸出

主時鐘:4個BNC輸出提供了Word Clock(WC /字時鐘)訊號,支持最大768 kHz採樣率。

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_move.svg

64比特聲學聚焦時鐘

完美的時鐘搭載享譽全球的羚羊音頻的抖動管理算法。

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

多個原子輸出

10MX支持多個原子輸出,能够支持最大 10 個10MHz設備同時連接到時鐘。

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_glide_vertical.svg

主時鐘輸出

通過2 x S/PDIF和2 x AES/EBU主時鐘輸出達192kHz採樣率。

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_mixer2.svg

最大控制

直觀軟體控制面板

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_laptop.svg

PC/Mac連接

通過USB連接PC / Mac,允許遠程遙控和固件升級

10mx融合了

描述

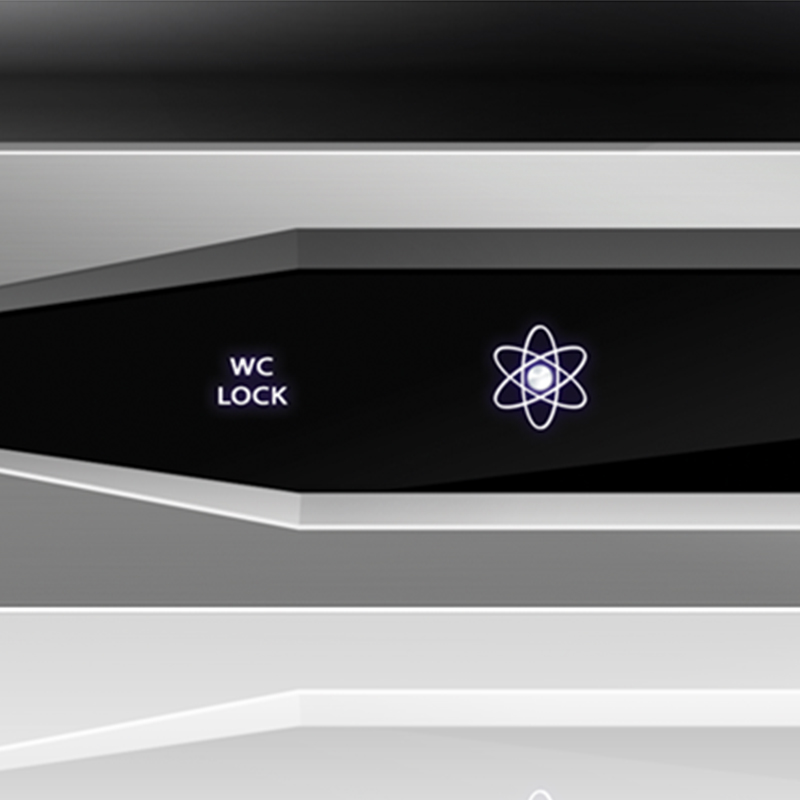

原子鐘

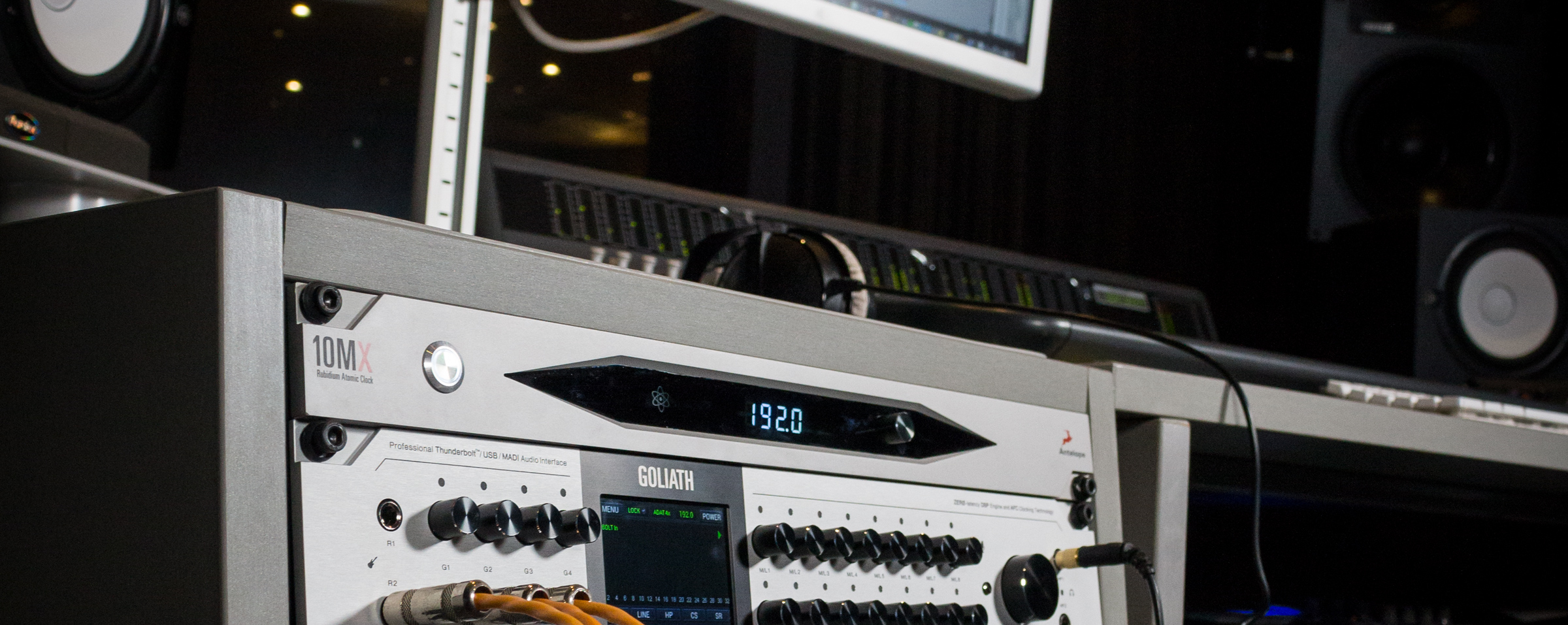

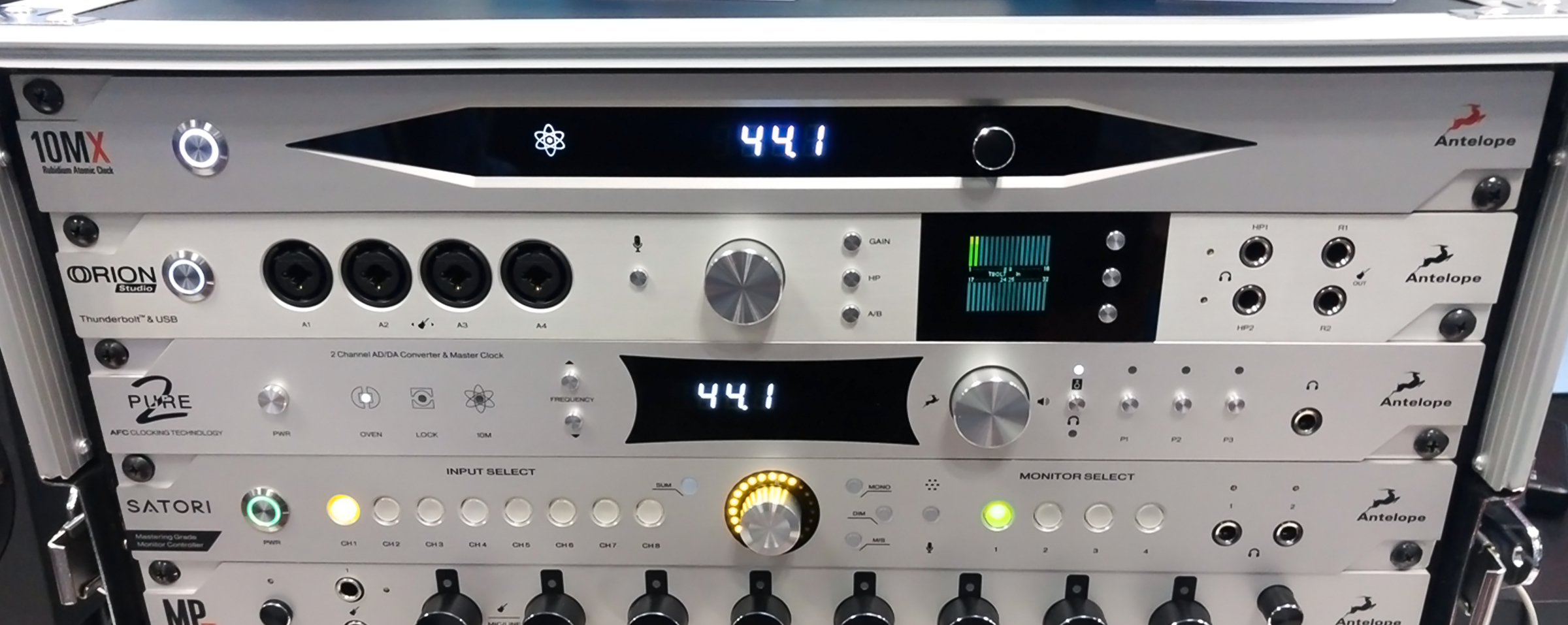

10MX工作室適應任何環境——從錄製到混音和母帶

10MX適合錄音、混音和母帶環境,其形成因素封裝在緊湊的1U機架箱中,也是很多現場擴聲用途的理想伴侶。

多原子輸出能够支持最大10個10MHz設備同時連接到時鐘。主時鐘有4個BNC輸出,支持最大768 kHz採樣率。可通過AES 和 S/PDIF可以實現多於4個WC輸出。

‘I’ve always been skeptical about people saying that they use a world. This is one of the first times I’ve actually had the time to sit down and do it… and I’m shocked”

PAUL BEVAN is one of New York’s busiest and most in-demand Sound Engineers, Production and Tour Managers, working on a wide variety of major corporate, special event and music projects, including: Hall & Oates, Boston Pops, World Economic Forum, NBC Today Show Summer Concert Series, US Open Tennis Finals, Lord of the Rings live to Projection, Re-dedication of Grand Central Terminal, and many other prestigious events.

Watch the full video

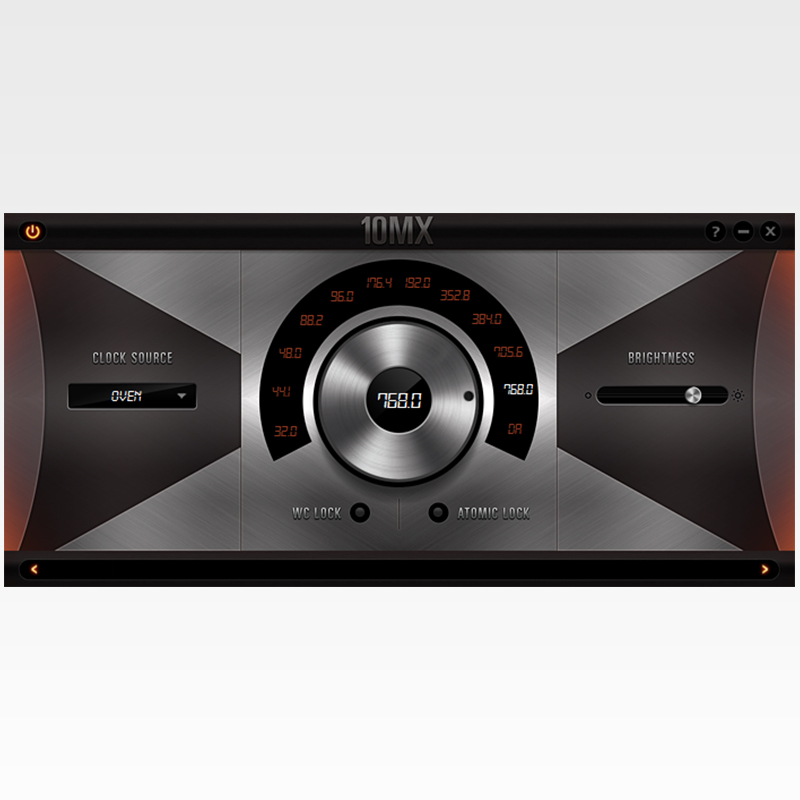

先進控制

10MX 所有功能都可以從前面板或通過包含的軟件控制面板訪問。

新的 10MX 主時鐘上的所有功能都可以從前面板或通過包含的軟件控制面板訪問,該軟件通過USB埠連接可以在OS X和Windows上使用。

傳奇的延續

10MX是世界著名的10M和Trinity的傳奇延續

新的銣原子鐘的出現是數字音頻世界裏20多年專業知識的頓悟的成果,使模擬聲音生動真實清晰,呈現深度、寬度和三維效果。

教程

TUTORIALS COMING SOON

Our team is working on it. If you have questions regarding the 10MX, please contact us.

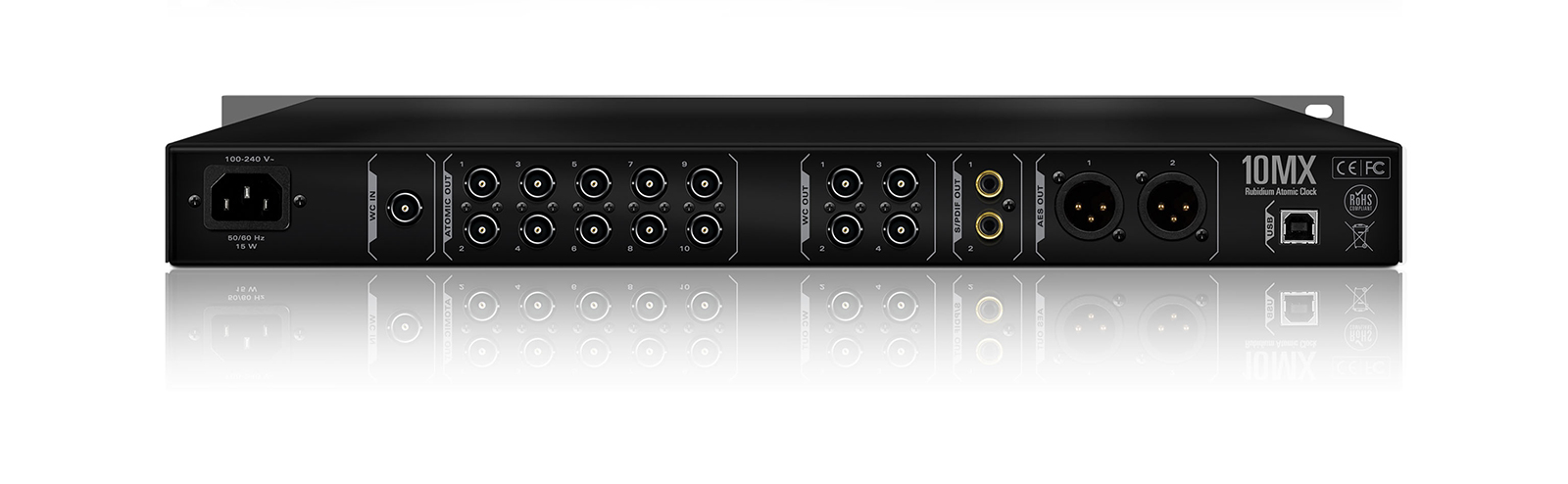

连通性

规格

    • Phase Noise (SSB)

1Hz ≤-70 dBc/Hz
10Hz ≤-87 dBc/Hz
100Hz ≤-114 dBc/Hz
1kHz ≤-130 dBc/Hz
10kHz ≤-140 dBc/Hz

    • Short-Term Stability

t=1s ≤3E-11
t=10s ≤1.6E-11
t=100s ≤8E-12
Time drift in a 24-hr period:

    • Warm-Up Time

8 – 10 minutes (depends on ambient temperature)

    • Word Clock Input

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz

    • Maximum shock
      withstanding

Non-operating, flight case mounted:
100m/s2 (~10.2 g*), 11 msec half-sine pulse per IEC 60068-2-27:2008
Non-operating, in original packing:
300m/s2 (~30.6 g*), 5 msec half-sine pulse per IEC 60068-2-27:2008
* g – gravitational acceleration

    • Outputs

Word Clock: 4 x BNC
AES/EBU: 2 x XLR
S/PDIF: 2 x RCA

    • Word Clock Outputs

4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 – 768 kHz square wave signal

    • USB I/O

USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B

    • Clocking System

4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

    • Clock Stability

<+/-0.0 2 PPM, oven controlled at 64.5 °C

    • Atomic Reference Type

Rubidium Ultra-Stable Resonance-Controlled Master Oscillator

    • Frequency

10 MHz

    • Frequency Accuracy

Better than ±5E-11 @25C (±0.05 PPB)

    • Aging

Daily* ±2.5E-11
Monthly* ±1E-10
Yearly ±1E-9
(*After 1 day & 1 month of operation respectively)

    • Atomic Clock Outputs

10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)

    • Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768

    • Word Clock Specs

TTL Level, 75 Ohm Output Impedance

    • USB

USB 2.0 Full-Speed, Type B, only for control

    • Operating Temperature

0-50°C, 32-122°F

    • Weight

2.8 kg/6.17 lb

    • Dimensions

482.6 (W) х228 (D) х 44 (H) mm
19 (W) x 9 (D) x 1.73 (H) inch

    • Power Supply

AC

    • Power Consumption

15 W

    • Humidity

30 – 80% RH non-condensing

    • Power Supply Input

100 – 240 V~

Master Clocks comparison table



10MX

LIVECLOCK

OCXHD

TRINITY

10M

10MX

LiveClock

OCXHD

TRINITY

10M

Atomic Reference Type

Rubidium Ultra-Stable Resonance Controlled
Master Oscillator
xxxRubidium Ultra-Stable Resonance Controlled
Master Oscillator

Clocking System

x4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
x

Clock Stability

t=1s ≤3E-11
t=10s ≤1.6E-11
t=100s ≤8E-12
<+/- 0.02 ppm, oven controlled at 64.5°C/ 148.1°F<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F< +/-0.02ppm @ 64.5°CTypical: 0.05 PPB per month (measured after 6 months of continuous operation)
First Year < 2 PPB

Clock Aging

Daily* ±2.5E-11
Monthly* ±1E-10
Yearly ±1E-9
(*After 1 day & 1 month of operation respectively)
< 1 ppm per year< 1 ppm per year< 1 ppm per yearBetter than 0.02 PPB
Typical: 0.05 PPB per month (measured after 6 months
of continuous operation)
First Year < 2 PpB

Warm-Up Time

8 – 10 minutes (depends on ambient temperature)xxx8-10 minutes (depends on ambient temperature)

Inputs

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz
1x Word Clock up to 192kHz
1x Atomic Input
2x Word Clock Inputs up to 768kHz
1 x 10M Atomic Clock Input
1x Video Input accepting wide range of SD and HD video signals
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
2 selectable Word Clock on BNC 32kHz – 384kHz
1x Atomic Input
1x Universal video input on BNC.
1x AES/EBU on XLR. 32kHz – 192kHz @110Ω terminated
1x S/PDIF on RCA. 32kHz – 192kHz @75Ω terminated
x

Outputs

4 x Word Clock Outputs on BNC 44.1 – 768 kHz square wave signal
10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)
2 x AES/EBU on XLR
2 x S/PDIF on RCA
4x Word Clock Outputs up to 192 kHz
2x AES/EBU Outputs up to 192 kHz
2x S/PDIF Outputs up to 192 kHz
10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz
Wordclock – 16 BNC, 3Vpp @ 75Ω
6x HD Video BNC @75Ω
SD 1 – BNC @75Ω fixed for NTSC video standard. Black Burst
SD 2 – BNC @75Ω fixed for PAL video standard. Black Burst
SD 3 – BNC @75Ω PAL 24/NTSC 30 selectable.Composite Sync
SD 4 – BNC @75Ω PAL 48/PAL 47.95 selectable. Composite Sync
AES/EBU – 4 XLR @ 110Ω
S/PDIF – 4 RCA @ 75Ω
8 x Atomic Clock Output on BNC Sinusoidal, 70 Ohm, 1 Vpp typical (unload)

USB I/O

USB 2.0 Full-Speed, Type B, only for controlUSB 2.0 Hi-Speed, Type B, only for control1x USB Input for control2.0 full-speedx

Frequency & Accuracy

10 MHz, better than ±5E-11 @25C (±0.05 PPB)xxx10 MHz, better than 0.03 PPB

Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Power Supply

AC Universal Input ~100-240V, 15 Watts max.DC Universal Input 12 – 18V, 6 Watts max.AC Universal Input ~95-245V, 20 Watts max.AC Universal Input ~90-250V, 15 Watts max.AC & DC Dual Redundant ~100-240V; 12V, 40 Watts during start up / 17 Watts after warm up

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth (for firmware update): 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.

评论

FEATURED REVIEWS COMING SOON

If you would like to test and review Antelope Audio’s newest Rubidium Atomic Clock, please contact us.

下载

MANUALS

User manual

10MX Owner’s Manual

SOFTWARE

Windows
10MX Control Panel for Windows (Nov 24, 2016)

MAC
10MX Control Panel for Mac OS X 10.9 and newer (Nov 24, 2016)
