產品概述

…The clock has an excellent feature set that is extremely flexible for our multi room facility.”

Mike Crossey is now based between Los Angeles and the prestigious Livingston Studios in London, arguably the highest spec studio in the UK. He is currently working with Josh Record, Nina Nesbitt, and Imelda May. Mike has produced a string of recent hits with artist Jake Bugg, Tribes, Two Door Cinema Club, and previously has worked with Arctic Monkeys, Black Keys, Keane, Foals, The Kooks, Razorlight, and The Enemy

最好的音響數字時鐘

一臺出色的時鐘

在紛繁複雜的音頻領域中,Trinity 以其令人豔羨的獨特功能在眾多產品中脫穎而出!有了專用的功能和控制方式,Trinity 在任何地方的應用都是一臺聲音最好、通用性最好的時鐘。很多優秀的音頻和後期製作工作室都配備了Trinity ,也令Trinity 成為了很多當代音樂和電影製作的根源。Trinity 也是當今很多大型現場音樂會和活動的重要組成部分。

特点

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

64位DSP聲學聚焦時鐘

採用了具有64位DSP處理能力的第四代聲學聚焦時鐘技術,使細節還原度達到了一個前所未有的新高度。

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_move.svg

強大的時鐘

得益於低抖動晶體振盪器,我們的原子時鐘可以達到超高的還原度。

http://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

384 KHZ的採樣率

採樣率高達384 KHZ,具有3個獨立的同步音頻發生器和3個獨立的音頻通道。

Isochrone Trinity 特點

描述

超越完美

穩定的時鐘和先進的抖動管理

由超穩定的恒溫晶體振盪器供電,Trinity的全新設計的時序引擎和第四代64位聲學聚集時鐘提供了極低的抖動和極高的穩定性,使其在聲學上有相當明顯的優勢。

原子輸入可以使它和10M原子鐘完美匹配,為用戶重新校準和雙冗餘電電源能讓其保持穩定運行並防止機器停止工作的可能性。

…I’ve tried many different permutations of clocking systems and have had varied results which left me unsure whether there was anything to be gained from a stable external clock. Having used the Antelope 10M and Trinity I can safely say the difference was truly staggering!”

paulepworthantelopeprPaul Epworth is one of the most influential British producer of his generation. His recent production roll-call reads like a must-have list for right-minded music fans: Adele’s ‘21’, Florence + The Machine’s ‘Ceremonials’ and ‘Lungs’, The Big Pink’s ‘Brief History Of Love’ and ‘Future This’, Foster The People ‘Torches’, Cee-Lo Green’s ‘The Lady Killer’, Friendly Fires’s ‘Pala’, Plan B’s ‘The Defamation Of Strickland Banks’…

我們竭盡全力做到最專業

為什麼獨一無二?

Trinity對那些通常需要幾個單位的需求非常仔細。 它使用了 3 HD和 2 SD令其可以鎖定所有已知的專業視頻格式,同時提供 3個獨立的音頻通道,並能以十分之一或百分之一的精度對 384 kHz的音頻進行調速。有了這樣的連通性,靈活性和易用性,Trinity 成了現代工作室的理想首選!

有了這樣的連通性,靈活性和易用性,Trinity 成了現代工作室的理想首選!

簡單的監聽控制

適應任何環境

高度集成的監聽控制器採用了 0.05 dB精度鍍金衰減器並提供了喇叭開關、低頻管理和集成對講功能的 cue混合模式。

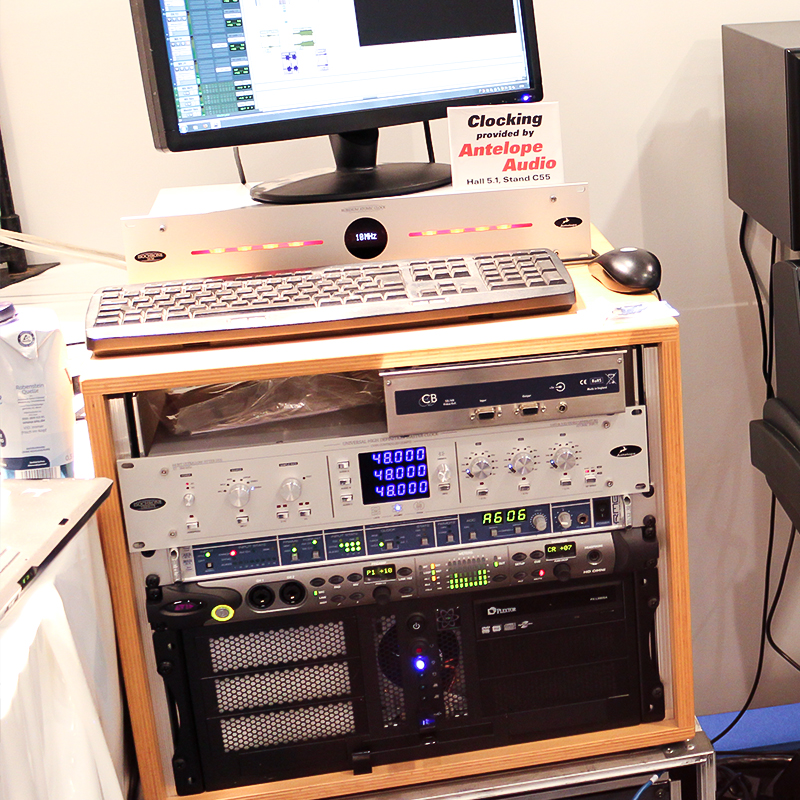

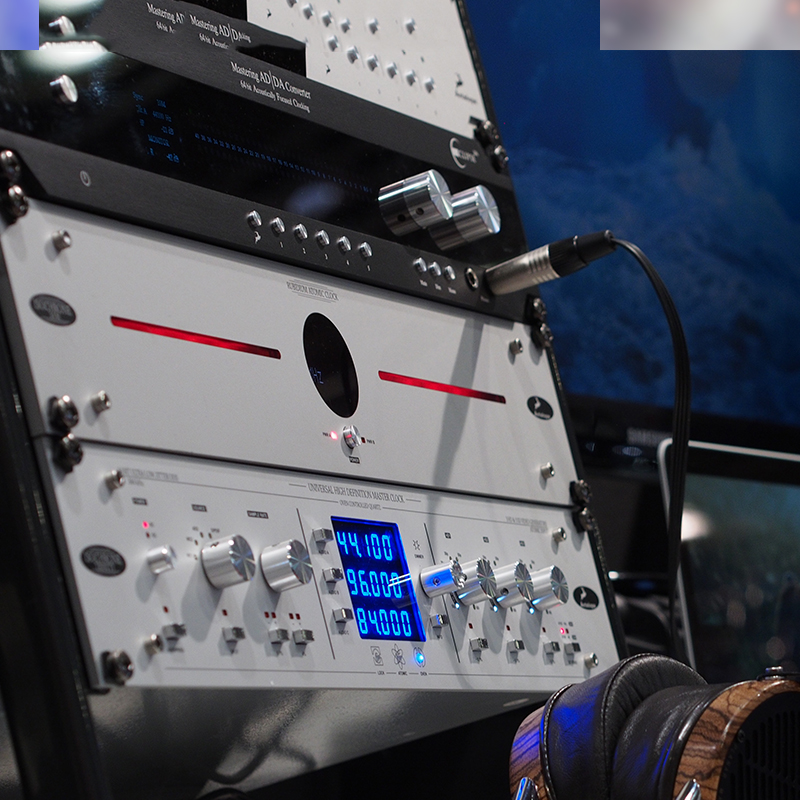

10M的最佳拍檔

Trinity和10M是完美拍檔

你可能會看到它們獨立的狀態,但通常它們是離不開對方的。

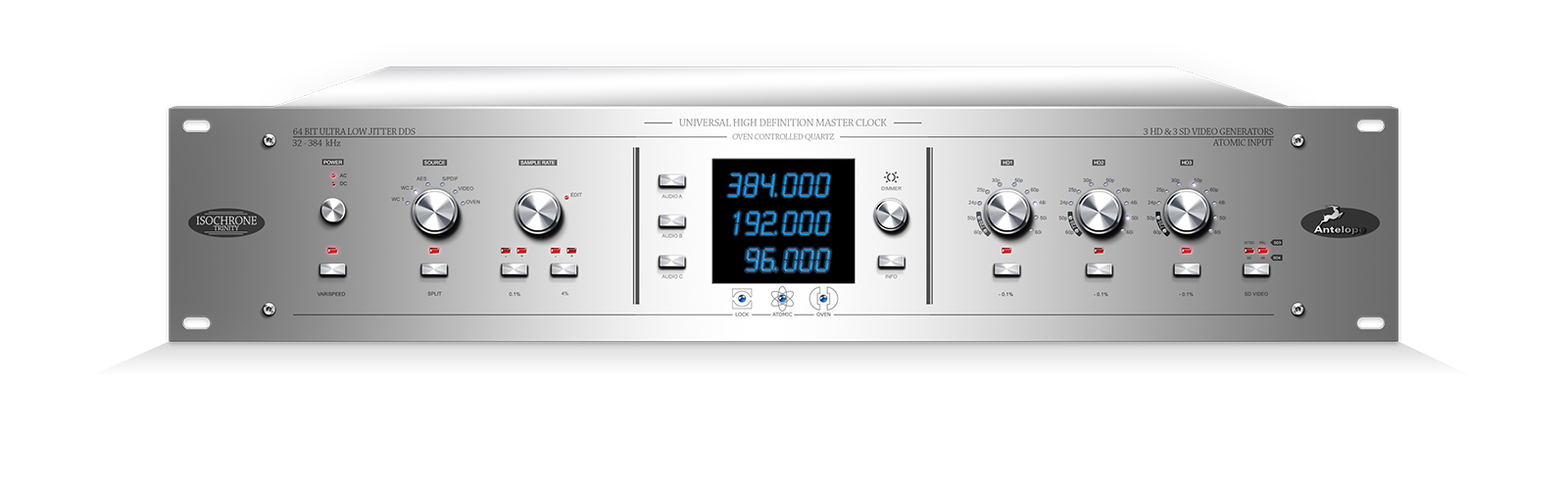

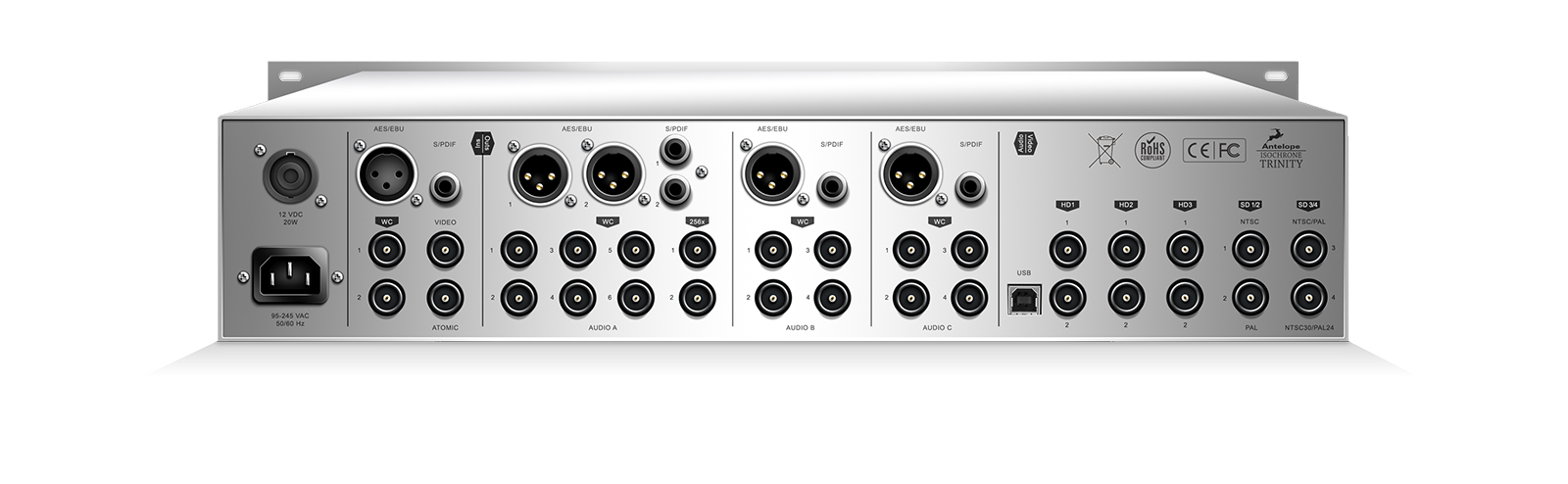

Connectivity

规格

    • Clocking System

4th Generation Acoustically Focused Clocking
64 bit DDS
Oven Controlled Crystal Oscillator

    • Stability:

< +/-0.02ppm @ 64.5°C

    • Ageing

< 1 ppm per year

    • Calibration

< +/-0.001 ppm

    • Atomic Clock Input

10MHz@1Vpp, BNC

    • Basic sampling rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384

    • Generators

9 Independent and simultaneous: 3 audio, 3 HD, 3 SD

    • Varispeed

+/-200 cents
+12.246%
-10,910%

    • Pull ups/downs

+/- 0.1% NTSC and/or +/- 4% PAL
-0.1% HD

    • Inputs

Universal video input on BNC.
Recognizes all video formats automatically
2 selectable Word Clock on BNC 32kHz – 384kHz
1 AES/EBU on XLR. 32kHz – 192kHz @110Ω terminated
1 S/PDIF on RCA. 32kHz – 192kHz @75Ω terminated

    • USB

2.0 full-speed

    • Outputs

HD Video 6xBNC @75Ω
SD 1 – BNC @75Ω fixed for NTSC video standard. Black Burst
SD 2 – BNC @75Ω fixed for PAL video standard. Black Burst
SD 3 – BNC @75Ω PAL 24/NTSC 30 selectable.Composite Sync
SD 4 – BNC @75Ω PAL 48/PAL 47.95 selectable. Composite Sync
Wordclock – 16 BNC, 3Vpp @ 75Ω
AES/EBU – 4 XLR @ 110Ω
S/PDIF – 4 RCA @ 75Ω

    • Operating Temperature

0-50°C, 32-122°F

    • Weight

4 kg / 8.8 lb

    • Dimensions (Approx)

482 mm (W) × 89 mm (H) × 203 mm (D)
19’’ (W) x 3.5’’ (H) x 8’’ (D)

Master clocks comparison table



10MX

LIVECLOCK

OCXHD

TRINITY

10M

10MX

LiveClock

OCXHD

TRINITY

10M

Atomic Reference Type

Rubidium Ultra-Stable Resonance Controlled
Master Oscillator
xxxRubidium Ultra-Stable Resonance Controlled
Master Oscillator

Clocking System

x4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
x

Clock Stability

t=1s ≤3E-11
t=10s ≤1.6E-11
t=100s ≤8E-12
<+/- 0.02 ppm, oven controlled at 64.5°C/ 148.1°F<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F< +/-0.02ppm @ 64.5°CTypical: 0.05 PPB per month (measured after 6 months of continuous operation)
First Year < 2 PPB

Clock Aging

Daily* ±2.5E-11
Monthly* ±1E-10
Yearly ±1E-9
(*After 1 day & 1 month of operation respectively)
< 1 ppm per year< 1 ppm per year< 1 ppm per yearBetter than 0.02 PPB
Typical: 0.05 PPB per month (measured after 6 months
of continuous operation)
First Year < 2 PpB

Warm-Up Time

8 – 10 minutes (depends on ambient temperature)xxx8-10 minutes (depends on ambient temperature)

Inputs

1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz
1x Word Clock up to 192kHz
1x Atomic Input
2x Word Clock Inputs up to 768kHz
1 x 10M Atomic Clock Input
1x Video Input accepting wide range of SD and HD video signals
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
2 selectable Word Clock on BNC 32kHz – 384kHz
1x Atomic Input
1x Universal video input on BNC.
1x AES/EBU on XLR. 32kHz – 192kHz @110Ω terminated
1x S/PDIF on RCA. 32kHz – 192kHz @75Ω terminated
x

Outputs

4 x Word Clock Outputs on BNC 44.1 – 768 kHz square wave signal
10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)
2 x AES/EBU on XLR
2 x S/PDIF on RCA
4x Word Clock Outputs up to 192 kHz
2x AES/EBU Outputs up to 192 kHz
2x S/PDIF Outputs up to 192 kHz
10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz
Wordclock – 16 BNC, 3Vpp @ 75Ω
6x HD Video BNC @75Ω
SD 1 – BNC @75Ω fixed for NTSC video standard. Black Burst
SD 2 – BNC @75Ω fixed for PAL video standard. Black Burst
SD 3 – BNC @75Ω PAL 24/NTSC 30 selectable.Composite Sync
SD 4 – BNC @75Ω PAL 48/PAL 47.95 selectable. Composite Sync
AES/EBU – 4 XLR @ 110Ω
S/PDIF – 4 RCA @ 75Ω
8 x Atomic Clock Output on BNC Sinusoidal, 70 Ohm, 1 Vpp typical (unload)

USB I/O

USB 2.0 Full-Speed, Type B, only for controlUSB 2.0 Hi-Speed, Type B, only for control1x USB Input for control2.0 full-speedx

Frequency & Accuracy

10 MHz, better than ±5E-11 @25C (±0.05 PPB)xxx10 MHz, better than 0.03 PPB

Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Power Supply

AC Universal Input ~100-240V, 15 Watts max.DC Universal Input 12 – 18V, 6 Watts max.AC Universal Input ~95-245V, 20 Watts max.AC Universal Input ~90-250V, 15 Watts max.AC & DC Dual Redundant ~100-240V; 12V, 40 Watts during start up / 17 Watts after warm up
