產品概述

…Pure2 offers exceptional sound quality and impressive flexibility when it comes to connectivity and routing options.”



Mitch Gallagher is one of the leading music/pro audio/audio recording authorities in the world. He teaches audio recording and music business at Purdue University/Indiana University, and has appeared at festivals, conventions and conferences around the world.

Watch the full review

兼具數字音頻的清晰度與模擬音頻的溫暖度

Pure2是一個高端轉換器,運用了Antelope公司享有世界聲譽的AFC(Acoustically Focused Clocking,聲學聚焦時鐘)技術,同時在內部也使用了真正的模擬電路。

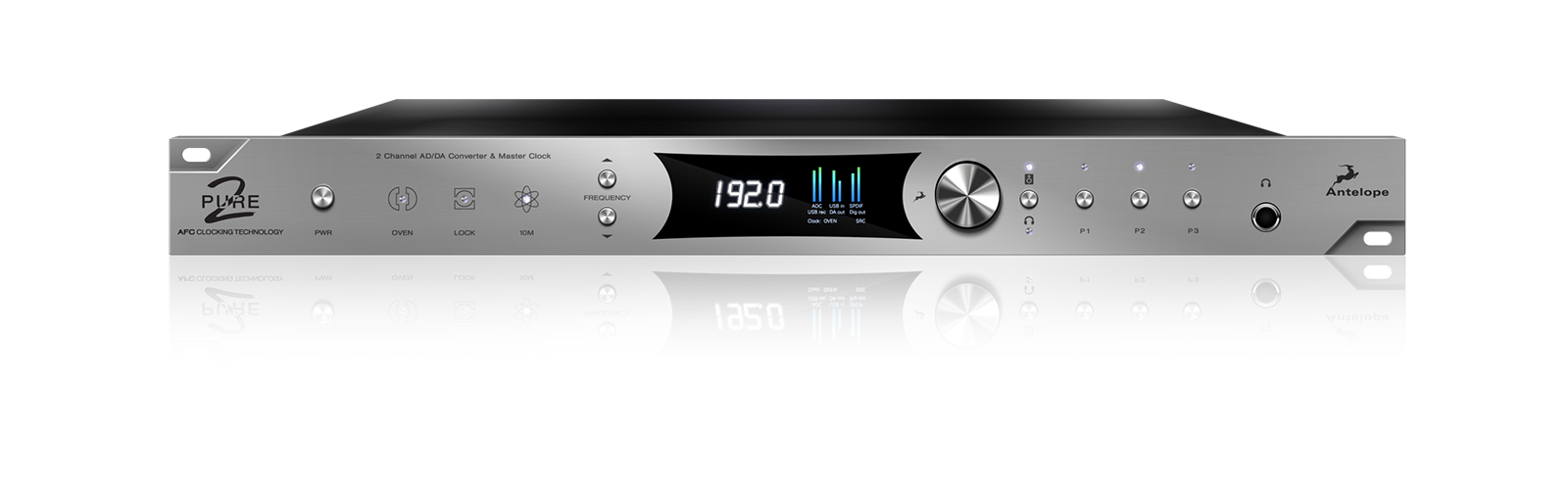

Pure2 是一款母帶級 24位,192 kHz AD/DA 雙通道轉換器兼主時鐘,包括繼電器控制音量衰減器。運用了Antelope公司享有世界聲譽的AFC(Acoustically Focused Clocking,聲學聚焦時鐘)技術,同時在內部也使用了真正的模擬電路。為獲得兼具數字清晰度和模擬溫暖度的聲音效果,它的模擬電路被一個具有專利技術的多階段線性能量供給系統所控制。

特点

https://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_stretch_diagonal1.svg

A/D 轉換器

轉換器PCM4222在經過精准優化的模擬電路對超載電平溫和控制,有利於使聲音保持模擬聽感,並讓超載失真更加平滑。

https://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/software_add_vectorpoint.svg

高級D/A

專用的D / A轉換器只為更加方便,允許監控次級來源

https://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_stretch_diagonal2.svg

D/A轉換

雙DAC架構這種設計極大地提高了信噪比和立體成像。

https://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_clockwise_dashed.svg

透明的模擬監聽

它裝備了繼電控制衰減器,以0.05dB為一個步進單位,以及全旁路選項

https://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

64位主時鐘

通過第四代AFC抖動控制技術使變頻調速變得鋒利

https://zh.antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_mixer.svg

軟體控制

它提供非常直觀的軟體控制面板(相容Mac和Windows系統)

特點

描述

Five high-performance components:

優化超載處理的A/D轉換器

著名的Burr-Brown模\數轉換器PCM4222在聲音品質與性能上是罕有對手的。

D/A轉換器採用雙DAC架構

它為左、右聲道分別提供了獨立的數\模轉換晶片。這種設計極大地提高了信噪比和身歷聲寬度。

“High-End”級別的耳機放大器享有一個獨立的 D/A

為這個耳機介面提供了更大的便利和路由靈活性,除了可以監聽主輸出通路,還能獨立的把其他通道路由到這個耳機介面來。

準確監聽繼電器模擬量控制

Pure2使用Antelope高品質的模擬音量控制。它裝備了繼電控制衰減器,以0.05dB為一個步進單位,並在主輸出通路上提供最理想的監聽透明度。

第四代羚羊的AFC抖動控制技術主時鐘

這與Antelope的旗艦主時鐘Isochrone Trinty和最熱銷的ADDA轉換器Orion32上所使用的技術是完全一樣的。

Given its price and its incredible flexibility and functionality, the Pure2 is an excellent option for mastering and archiving studios.”

Photo by Sophie Brill

Jessica Thompson is a GRAMMY-nominated mastering and restoration engineer and audio archivist at Coast Mastering in Berkeley, California.
Her remaster of Erroll Garner’s iconic live performance The Complete Concert By the Sea (Sony/Legacy) was nominated for Best Historical Album GRAMMY, 2016

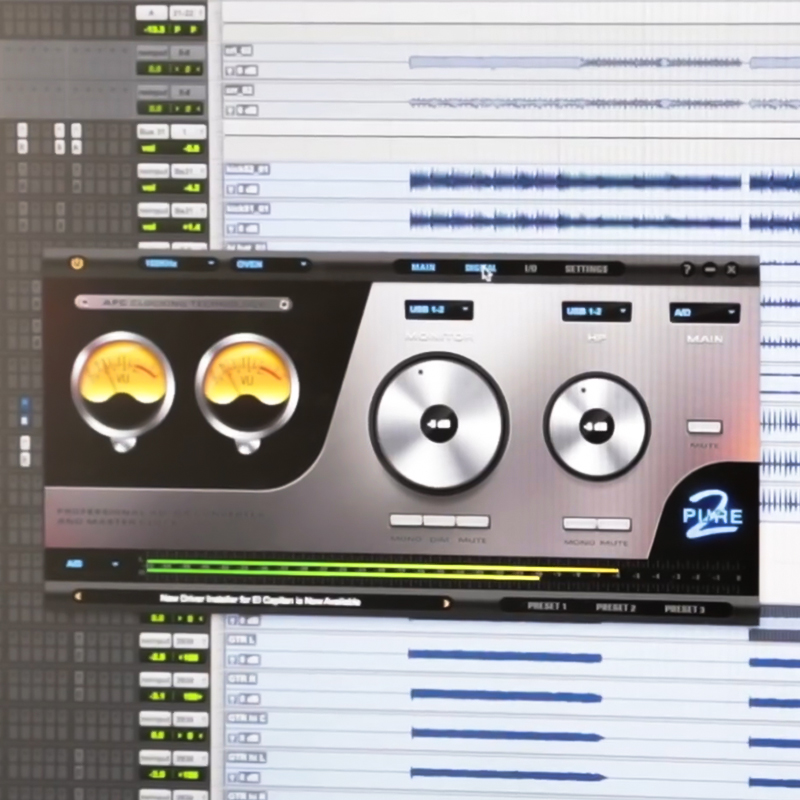

靈活控制

通過軟體控制面板或者Mac和Windows應用程式來使用 Pure2 的所有功能

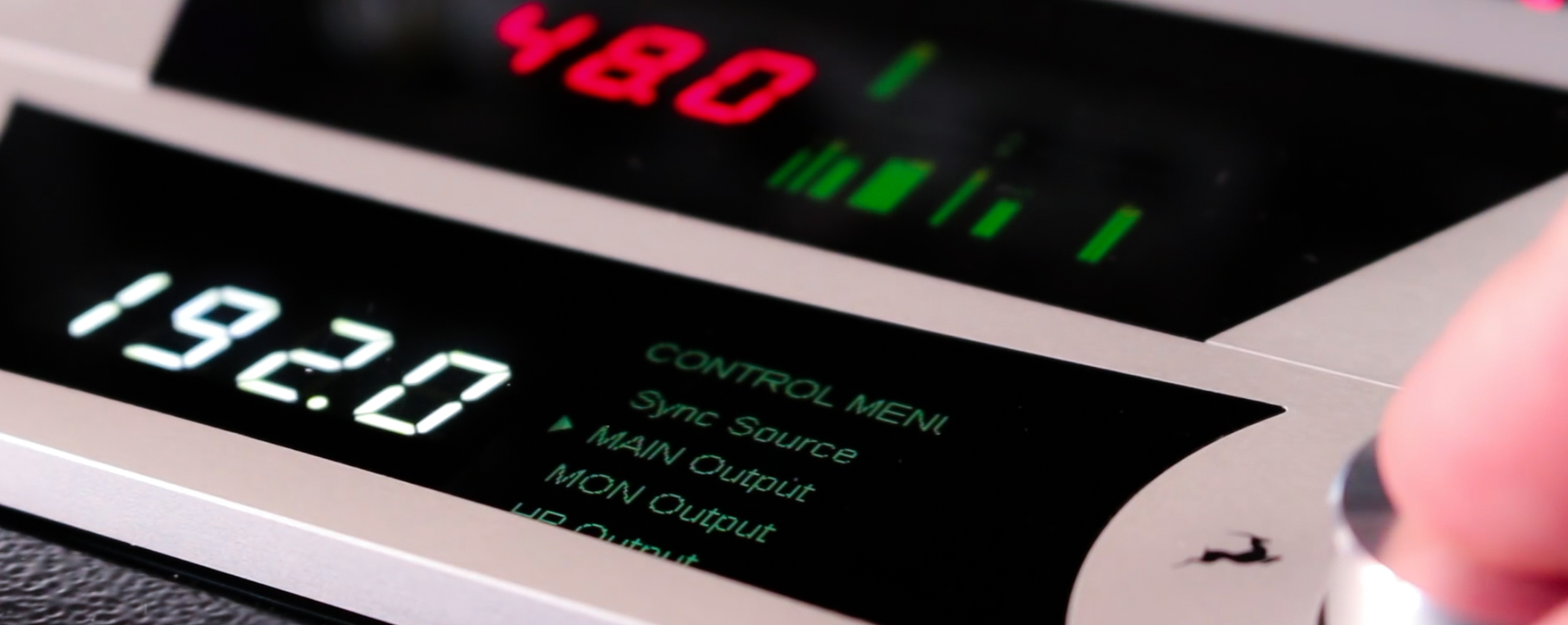

它提供非常直觀的軟體控制面板(相容Mac和Windows系統),用戶可以在電腦上對它所有的參數進行控制。同時,Pure2前面板上的控制鍵可以被用戶自定義設置。

簡單生活

我們知道工程師的生活不那麼迷人。所以我們努力讓一切變得更簡單。

兩分鐘內你就可以把Pure2 設置好。只需是一個 USB電纜(在箱子內)和一台筆記本電腦(Win 7.1或更高 / Mac OS X 10.9或更高),你就可以開始以192 kHz捕獲身歷聲音頻。

設置好後,只需下載控制面板,點擊幾下就可以了。

教程

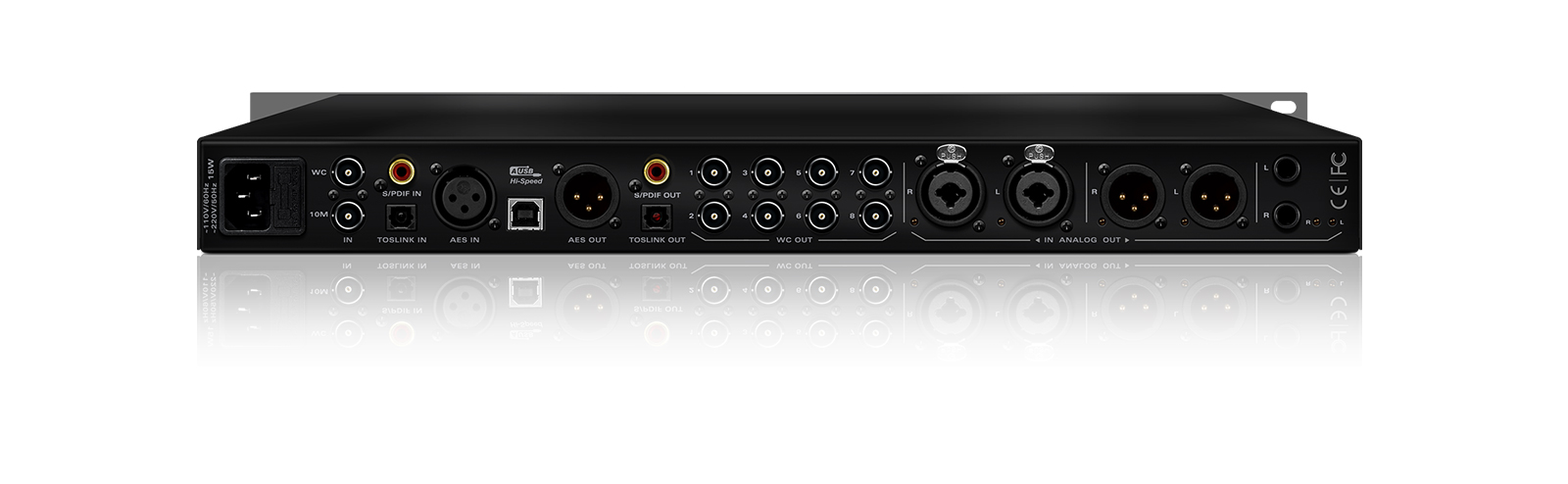

连通性

规格

    • Analog Inputs

2 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu

    • Digital Inputs

1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
1 x TOSLINK on optical fiber: up to 96kHz

    • Word Clock Input

1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

    • Analog Outputs

1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu and user adjustable from 8dBu to 26dBu
1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS)
1 x 1/4 TRS Front Headphones 20dBu

    • Digital Outputs

1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
1 x TOSLINK on optical fiber: up to 96kHz

    • Word Clock Outputs

8 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

    • USB I/O

USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz,
4 channels I/O playback/record, Type B

    • External Reference Clock

1 x 10M Atomic Clock Input @ 75 Ohms 1Vpp on BNC
1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

    • A/D Converter

Dynamic Range: 122dB
THD+N: -105dB

    • D/A Converters

Main DAC Dynamic Range 127dB; THD+N -107dB
Monitor DAC Dynamic Range 120dB; THD+N -103dB
Headphones DAC Dynamic Range 120dB; THD+N -100dB

    • Clock Specifications

<+/-0.02 PPM, oven controlled at 64.5°C/ 148.1°F

    • Clock Aging

< 1 ppm per year

    • Clock Calibration

< +/-0.001 ppm

    • Atomic Clock Input

10MHz @ 1Vpp, BNC

    • Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192

    • Operating Temperature

0-50°C, 32-122°F

    • Weight

3 kg, 6.6 lb approx.

    • Dimensions (Approx)

483mm(W) x 44mm(H) x 220mm (D)
19”(W) x 1.75”(H) x 8.66”(D)

    • Power Supply

~110VAC 60Hz/ ~220VAC 50Hz selectable

    • Atomic Clock Input

1 x 10M Input @ 75 Ohms 1Vpp on BNC

    • Fuses

2 x 0.8A 250VAC 5mm x 20mm Type T (or Time delay)

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth: 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.

评论

下载

MANUALS

User manual

Pure2 Owner’s Manual

Drivers

Windows 7/8.1
USB ASIO Driver for Win 7/8.1 (v.3.40, Nov 15, 2016)
Windows 10
USB ASIO Driver for Win 10 (v.3.40, Mar 22, 2017)
MAC
Unified Driver Installer for Mac (3.21, Feb 12, 2018)

SOFTWARE

Launchers

Windows
[formlightbox_call title=”Please install only AFTER seeing the video.” class=”2″]Download Pure2 Control Panel for Windows7 and newer (Nov 24, 2016)[/formlightbox_call] [formlightbox_obj id=”2″ style=”padding: 10px;text-align:center;”]
Click here to download the Pure2 Control Panel[/formlightbox_obj]

MAC
[formlightbox_call title=”Please install AFTER seeing the video.” class=”5″]Download Pure2 Control Panel for Mac OS X 10.9 and newer (Nov 24, 2016)[/formlightbox_call] [formlightbox_obj id=”5″ style=”padding: 10px;text-align:center;”]
Click here to download the Pure2 Control Panel[/formlightbox_obj]
