我们的 Thunderbolt & USB 音频接口，涵盖了适用于桌面的小型便携声卡到适用于专业录音棚的机架式64通道数模转换器
音频接口
数字的清晰。模拟的温暖。
关键技术
卓越的时钟
完美的转换
我们的音频接口直接继承了我们Isochrone系列高端专业录音室主时钟的技术。这种卓越的内置时钟是我们实现高分辨率AD/DA转换和整体音频质量的关键。
Synergy Core
实时效果引擎
Synergy Core 效果平台让您能够在录音和后期制作过程中使用内置模拟建模效果进行实时处理，几乎没有延迟，也不会给您的电脑带来额外压力。
离散式
话放架构
我们的离散式话放设计始于对历史上一些优秀模拟调音台中话放的研究。我们采用晶体管组合，从而降低噪音，更重要的是实现精准的声音捕捉。因为任何录音工程师都会看重一个话放的特性 —— 透明度。

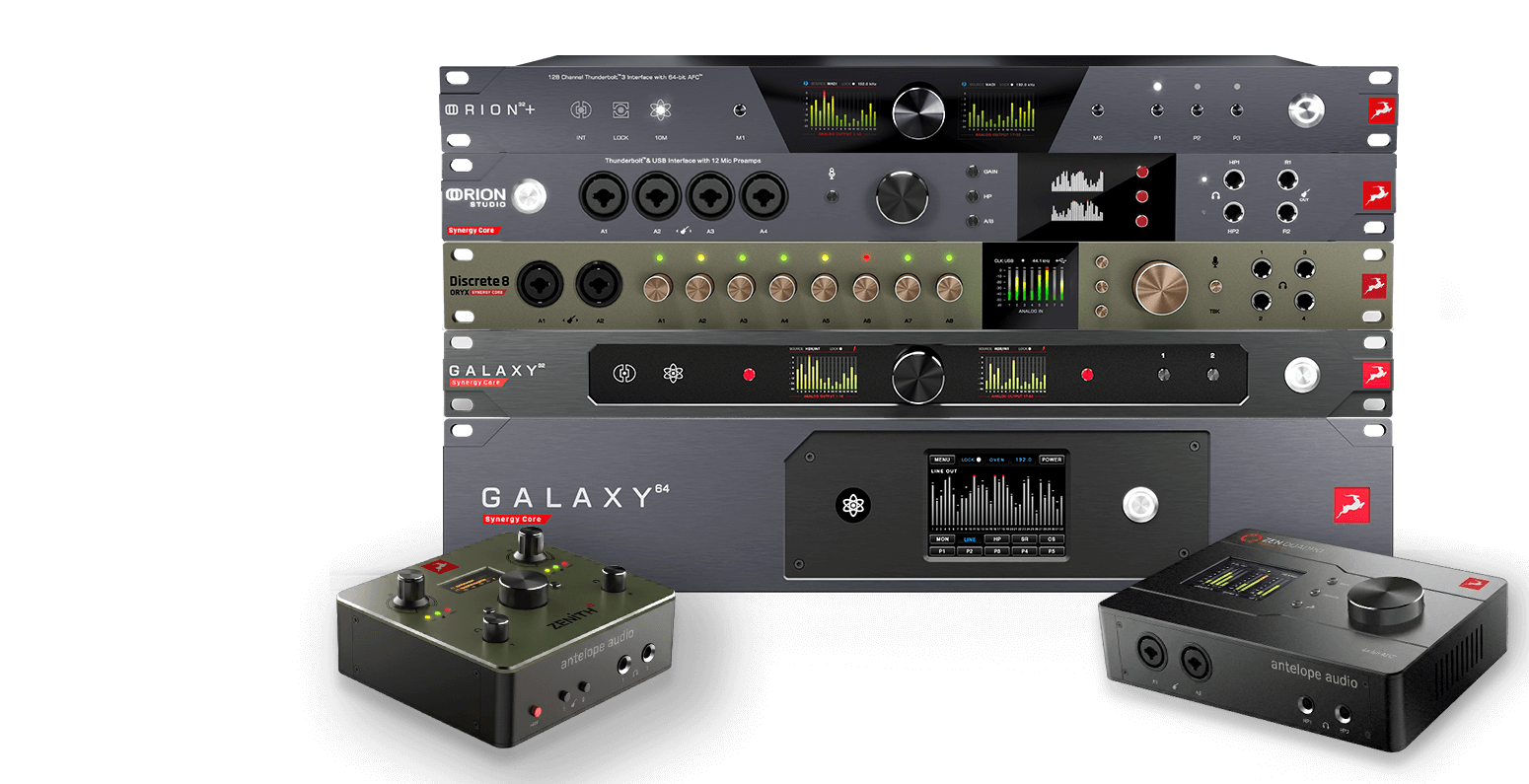

浏览我们的音频接口系列产品
- Desktop and Portable Studios
- Band Recording and Project Studios
- Broadcast, Commercial and Immersive Studios
For home-based creators and traveling professionals

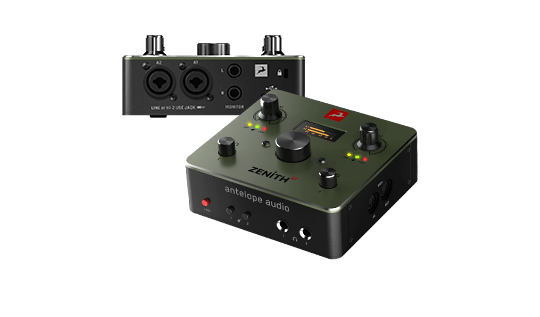

Zenith 2
- Bus-powered USB audio interface for Mac, Windows, iOS and Android;
- 2 Discrete preamps (mic, line & Hi-Z);
- 1 x stereo monitor output (TRS), and 2 x headphone outputs;
- 1x stereo output (TRS) and 2x headphone outputs for monitoring;
- MIDI I/O;
- Up to 123 dB of AD/DA conversion enhanced by proprietary 64-bit AFC™️clocking;
- Built-in DSP effects for studio and guitar, processed in real-time with imperceptible latency.
Zen Quadro
synergy core
- Bus-powered Dual-USB audio interface for Mac, Windows, iOS and Android;
- 4 Discrete preamps (2 x mic, line & Hi-Z and 2 x mic & line);
- 1 x stereo monitor output (TRS), 2 x line outputs (TRS) and 2x headphone outputs;
- ADAT input (up to 8 channels) & S/PDIF (up to 2 channels) I/O;
- Up to 130dB of AD/DA conversion enhanced by proprietary 64-bit AFC™ clocking;
- 37 Synergy Core effects included. Processed by 1 x DSP & 1 x FPGA chips in real-time with imperceptible latency.
For project studio owners who often collaborate with small to mid-sized bands

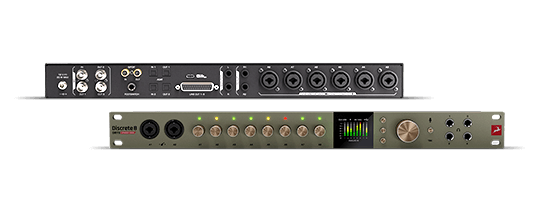

Discrete 8 Oryx
synergy core
- USB-C audio interface for Mac & Windows;
- 8 x Discrete mic preamps (2 x mic, line & Hi-Z; 6 x mic & line);
- 1 x stereo monitor output, 2 x reamp outputs and 8 x analog outputs on DB25;
- 4 x headphone outputs with X-feed for enhanced stereo image;
- ADAT (up to 16 channels) and S/PDIF (up to 2 channels) I/O;
- Up to 130dB of AD/DA conversion enhanced by proprietary 64-bit AFC™ clocking;
- 37 Synergy Core effects included. Processed by 2 x DSP & 1 x FPGA chips in real-time with imperceptible latency;
- Virtual patchbay routing;
Orion Studio
synergy core
- Thunderbolt 3 & USB 2.0 audio interface for Mac & Windows;
- 12 discrete ultra-linear mic preamps (mic, line & Hi-Z);
- 2x reamp outputs and 16 x analog outputs on DB25;
- 2x stereo outputs and 2 x headphone outputs for monitoring;
- 2x ADAT (up to 16 channels) and S/PDIF (up to 2 channels) I/O;
- Up to 130dB of AD/DA conversion enhanced by proprietary 64-bit AFC™ clocking;
- 51 Synergy Core effects included. Processed by 6 x DSP & 2 x FPGA chips in real-time with imperceptible latency;
- Optional surround and immersive audio monitoring functionality supporting more than 23 formats up to 9.1.6 Dolby Atmos.
For high-profile production facilities with optical or Dante audio networking

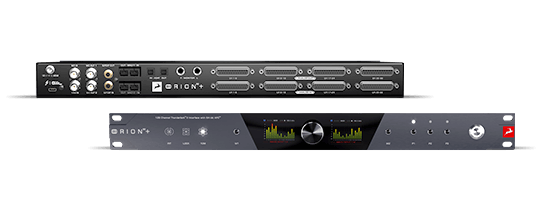

Orion 32+
Gen4
- Thunderbolt 3 & USB 2.0 audio interface for Mac & Windows;
- 8x DB25 connectors, 1x stereo output for monitoring;
- MADI (up to 128 channels), ADAT (up to 8 channels) and S/PDIF (up to 2 channels) I/O;
- Word clock I/O and 10M input;
- Up to 130dB of AD/DA conversion enhanced by proprietary 64-bit AFC™ clocking;
- Optional surround and immersive audio monitoring functionality supporting more than 23 formats up to 9.1.6 Dolby Atmos
Galaxy 32
synergy core
- Thunderbolt 3, DANTE & HDX audio interface for Mac & Windows;
- 8x DB25 connectors, 1x stereo output for monitoring;
- 64 I/O channels via Dante, 64 I/O channels via HDX;
- ADAT (up to 8 channels), MADI (up to 64 channels) and S/PDIF (up to 2 channels) I/O;
- Word clock/Loop sync I/O and 10M input;
- Up to 130dB of AD/DA conversion enhanced by proprietary 64-bit AFC™ clocking;
- 37 Synergy Core effects included. Processed by 6 x DSP & 2 x FPGA chips in real-time with imperceptible latency.
Galaxy 64
synergy core
- Thunderbolt 3, DANTE & HDX audio interface for Mac & Windows;
- 16x DB25 connectors, 1x stereo output and 1 x headphone output for monitoring;
- 64 I/O channels via Dante, 128 I/O channels via HDX;
- MADI (up to 64 channels), AES/EBU (up to 2 channels) and SPDIF (up to 2 channels) I/O;
- Word clock I/O, Loop sync I/O and 10M input;
- Up to 130dB of AD/DA conversion enhanced by proprietary 64-bit AFC™ clocking;
- 37 Synergy Core effects included. Processed by 12 x DSP & 2 x FPGA chips in real-time with imperceptible latency.
您需要什么样的音频接口？
家庭工作室和旅途出行使用
Zen 系列音频接口体积小巧，让我们的用户无论身在何处都能获得专业录音棚级的录音体验。该系列的两款小型音频接口 Zen Qudaro 完全采用总线供电。相比之下，较大的 Zen Tour 则拥有更多扩展的模拟 I/O，除了2个独立的Reamp输出外，还配备了多个高阻乐器输入，并且它还配备了我们先进的数字路由矩阵，可用作虚拟跳线盘。这些特性使 Zen Tour 成为更复杂配置的理想之选。
灵活的项目录制和移动演出录音
对于需要多路返送监听的专业人士，我们带来了 Discrete 4，它体积小巧，配备4个耳机输出。而Discrete 8 配备更多话放，并具有Reamp输出，如果您的乐队规模较大，它将成为您的首选。
专业录音棚和演出现场录音
如果您需要大量线路输入/输出来连接外部话放或其他音频设备，我们推荐您选择 Orion 32+ Gen4，这是一款 32 通道音频接口，配备母带级监听输出。Orion Studio Synergy Core 则配备 12 个独立话放，是任何专业录音工作室的全方位解决方案。
顶级录音机构
我们专为顶级录音棚打造的专业音频接口包括 Galaxy 32 和 Galaxy 64。它们能够突超大量的模拟和数字输入输出，并能够以最高采样率同时使用所有模拟 I/O 和所有数字 I/O。这项前所未有的功能非常适合那些希望同同步多个复杂系统，且不影响音质或性能的用户。
